Media Sonic

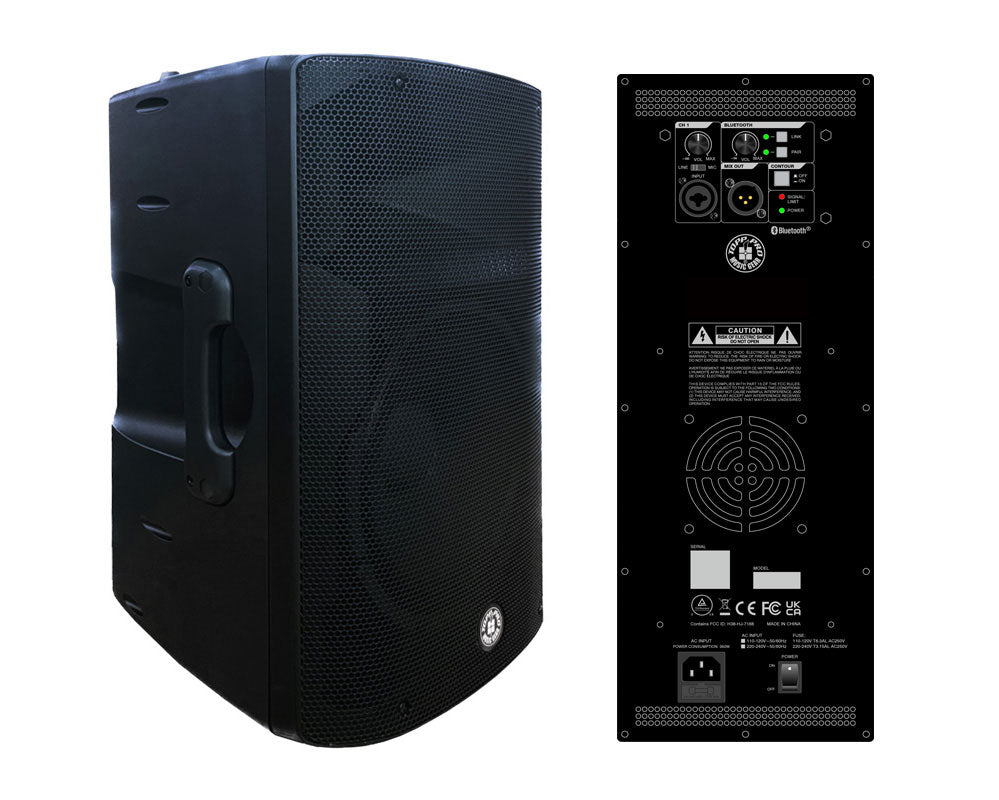

TOPPRO X8A MKII

TOPPRO X8A MKII

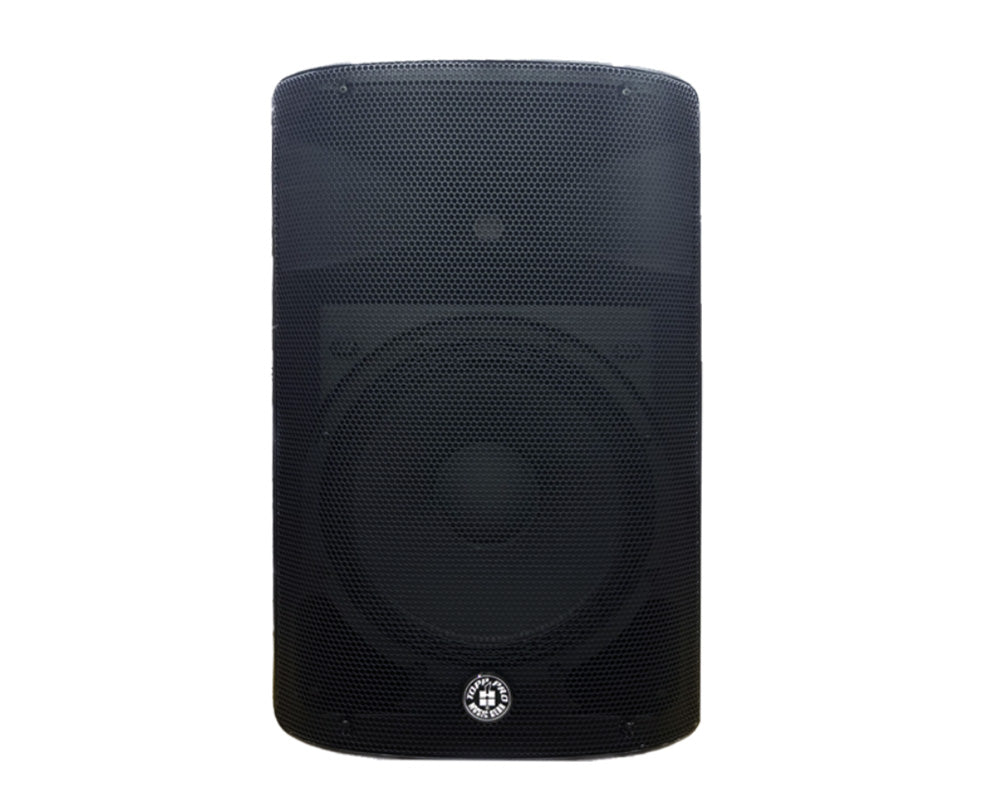

Baffle TOPPRO X8A MK2

1600W - 114dB Total System Peak Power

Stereo Bluetooth

Active Plastic Speaker

Model X8A MKII

System Type 2-Way Active Ported Loudspeaker

Power System Class D SMPS (Bi-AMP, LF 120W/RMS + HF 30W/RMS), 600W Peak

Continuous Power (120W / LF + 30W / HF)

Program Power (240W / LF + 650W / HF)

Transducers 8" (203mm) Woofer - 1" (25mm) Ferrite compression driver, 1" (25mm)

Crossover Frequency 2.5kHz

Max SPL at 1m 114dB (peak), 86dB (continuous) (dB-SPL @ 1m)

Frequency Response 75Hz - 20kHz (-3dB)

Frequency Range 68Hz - 20kHz (-10dB)

Horn Coverage H° x V° 90° horizontal x 60° vertical (nominal)

Equalization Contour Switch, emphasizes low and high frequencies by +3 dB

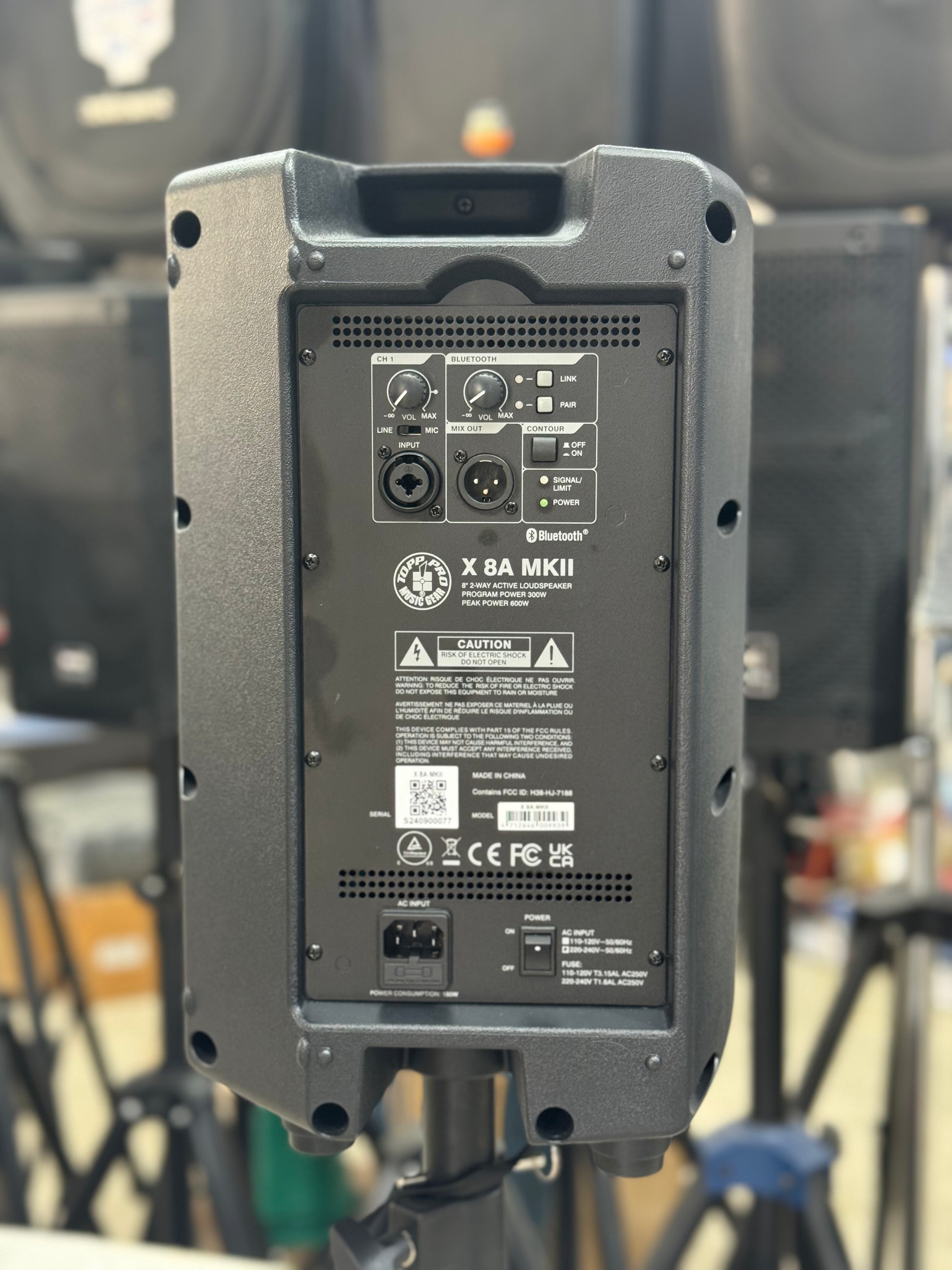

Connector XLR balanced input (Line / Mic); XLR mix output (Link); IEC power cable input

Bluetooth Stereo Stereo L/R-VOL-Pair-Link Switch

Controls Volume Control knob / Power Switch / Contour Switch / Line & Mic toggle Switch

Indicators Power ON with Green LED, Clip Limiter with Red LED; Bluetooth Pair/Link LED

Power 110V-120V / 50-60Hz or 220V-240V / 50-60Hz

Electronic Protections Thermal / Overload / Analog limiter / Compressor

Enclosure Construction Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top

Mounting Standard 36mm pole socket, wedge monitor

Dimensions (HxWxD) 422 x 272 x 252mm (16.6" x 10.7" x 9.7")

Net Weight 13.1lb. / 5.96 kg
